ChipboxTUTORIAL

The most famous drum break there is, in four bars.

0The whole thing

Four bars, and bars 1 and 2 are the same. The numbers are the 16 steps of a bar:

          1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6
bars 1+2  CH  x . x . x . x . x . x . x . x .
          SD  . . . . x . . x . x . . x . . x
          BD  x . x . . . . . . . x x . . . .

bar 3     CH  x . x . x . x . x . x . x . x .
          SD  . . . . x . . x . x . . . . x .
          BD  x . x . . . . . . . x . . . . .

bar 4     CH  x . x . x . x . x . . . x . x .
          CR  . . . . . . . . . . x . . . . .
          SD  . x . . x . . x . x . . . . x .
          BD  . . x x . . . . . . x . . . . .

1A new project

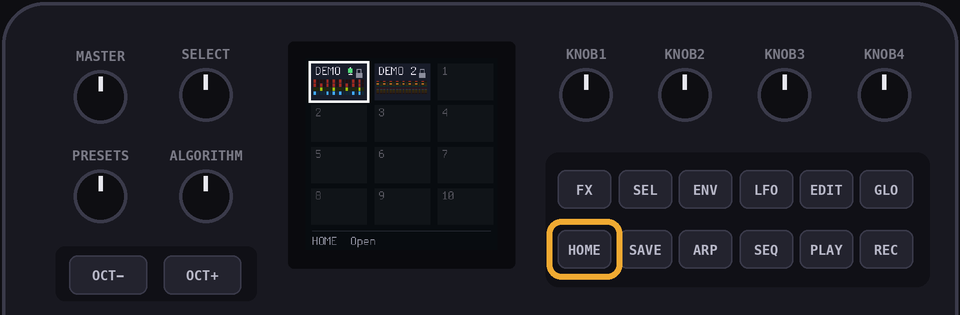

Hold HOME to open the project list
a-picker

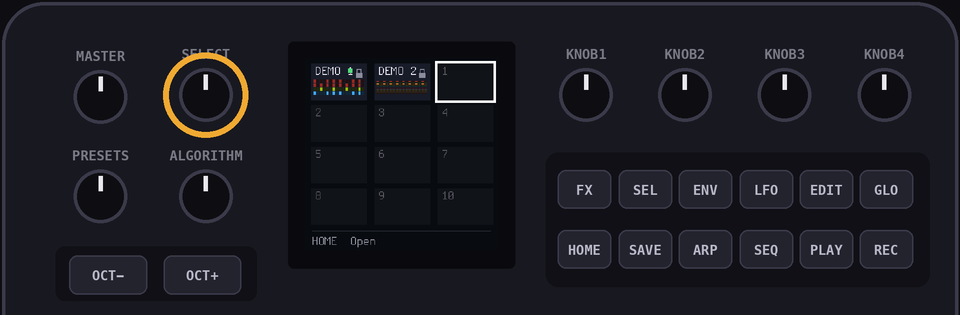

Turn SELECT to an empty one and hit OCT+ to open it
a-slot

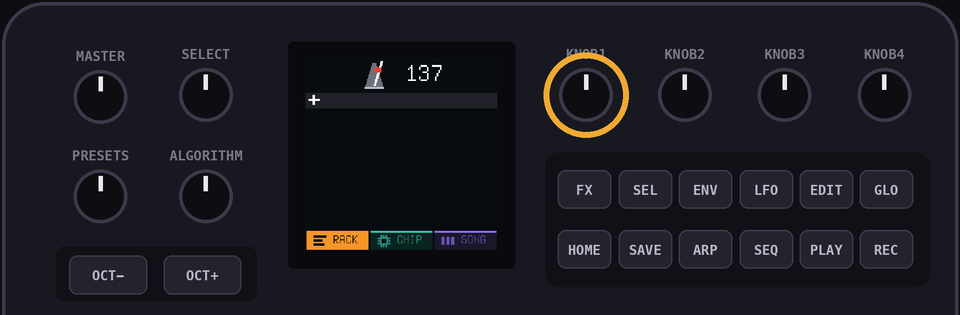

Set KNOB 1 to 137
a-tempo

2Add the drums

Hit OCT+ on the + row and pick a console. Every console has its own drum kit
a-cons

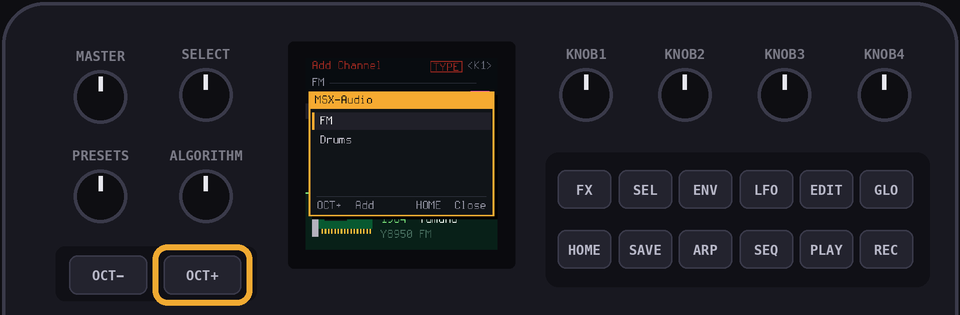

Hit OCT+ again and pick Drums
a-sub
Hit SEQ to see the drum lanes
a-lanes0

3The hi-hats

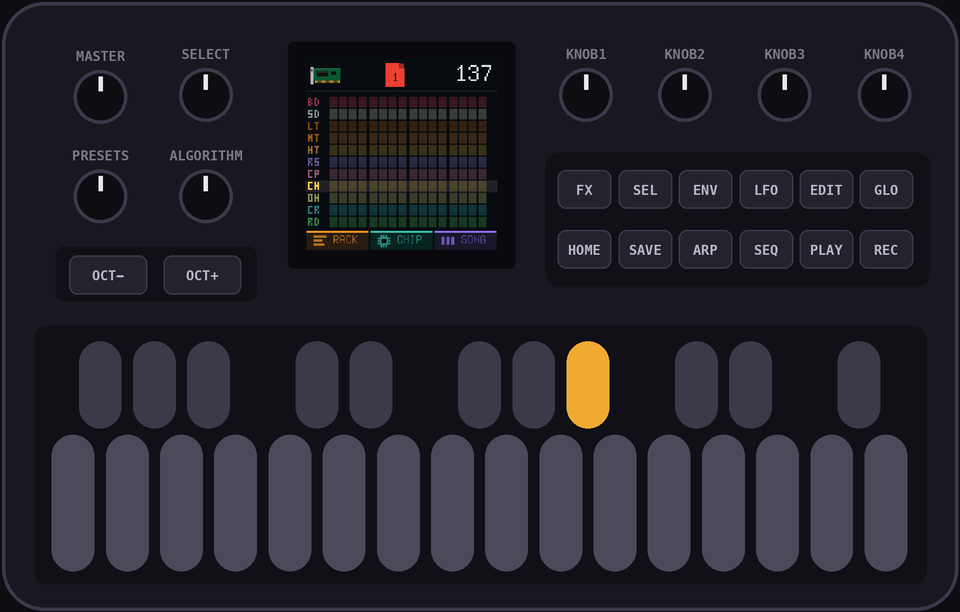

Use the black keys to pick the drum. The white keys align to the 16 steps. Press the 8th black key for CH, the hi-hat
a-ch0
Press white keys 1, 3, 5, 7, 9, 11, 13 and 15
a-hats
PROTIP: Press a hit again to take it away. Hit PLAY first if you want to hear it as you build it

4The snare

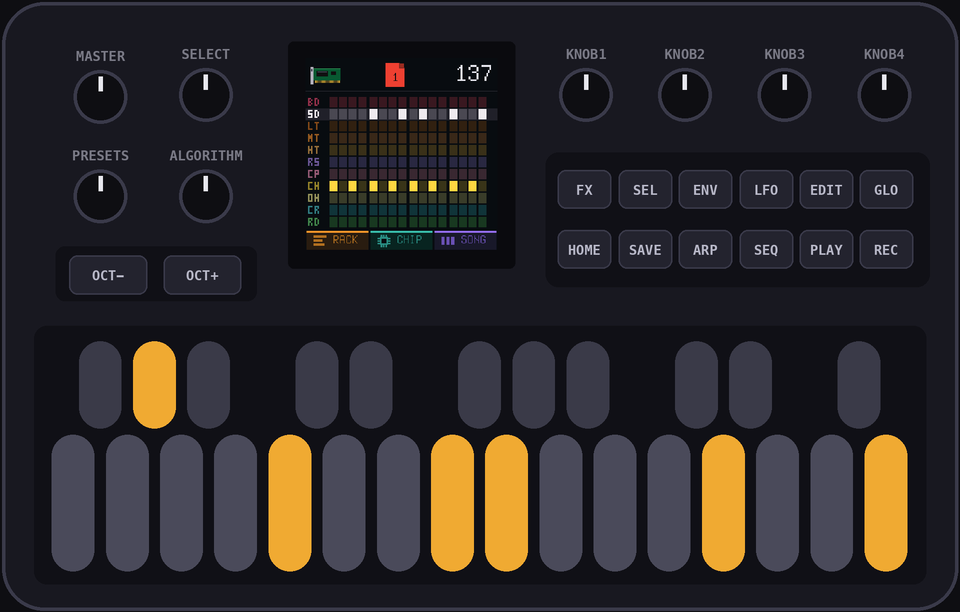

Press the 2nd black key for SD, then white keys 5, 8, 10, 13 and 16
a-sd
PROTIP: Hold ENV while you press 5 and 13 to accent them

5The kick

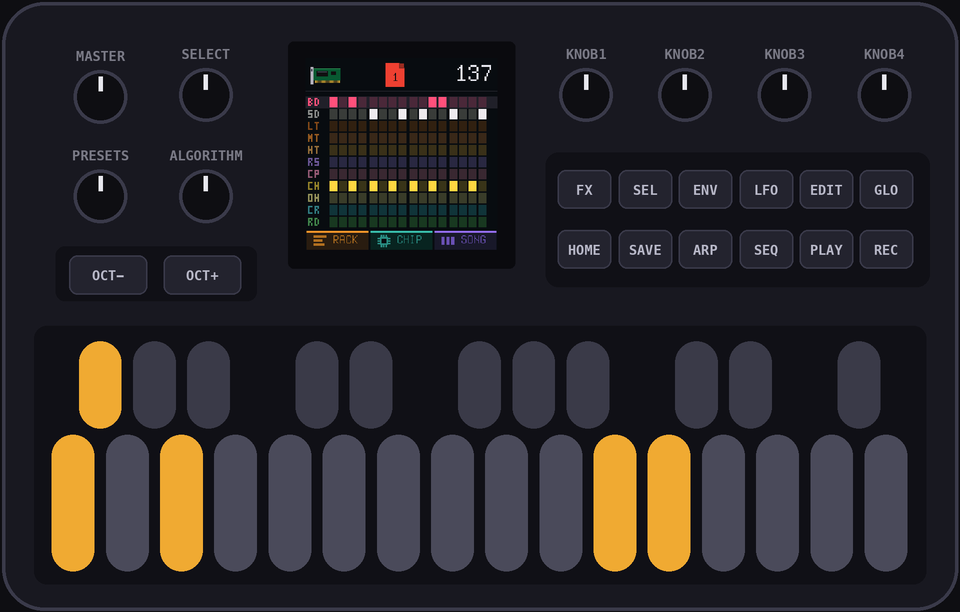

Press the 1st black key for BD, then white keys 1, 3, 11 and 12
a-bd

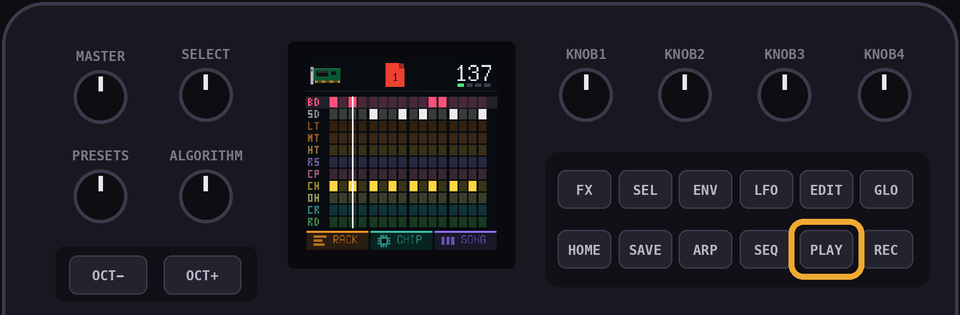

Hit PLAY to hear bar 1
a-play

6Bar 2

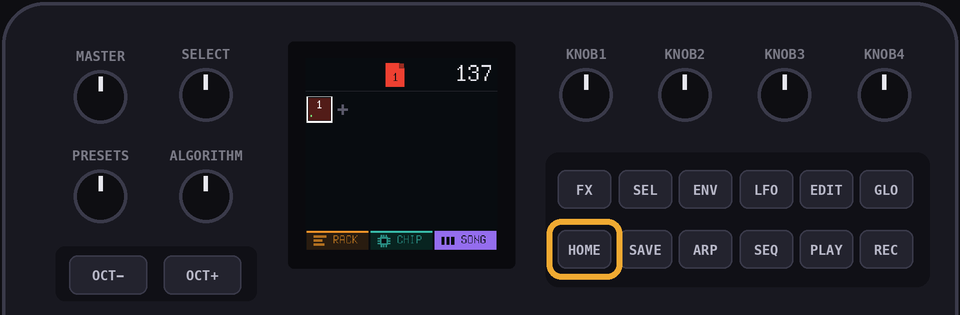

Bar 2 is the same, so play page 1 twice. Hit HOME until you're in the SONG view
a-song

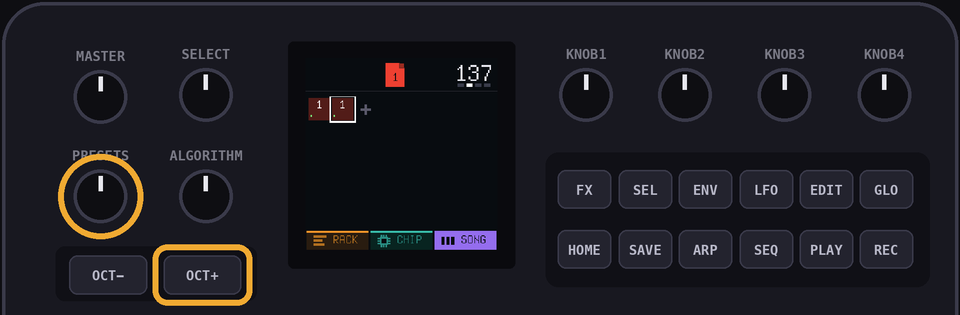

Hit OCT+ for a new slot, then turn PRESETS until it says 1
a-song2

7Bar 3

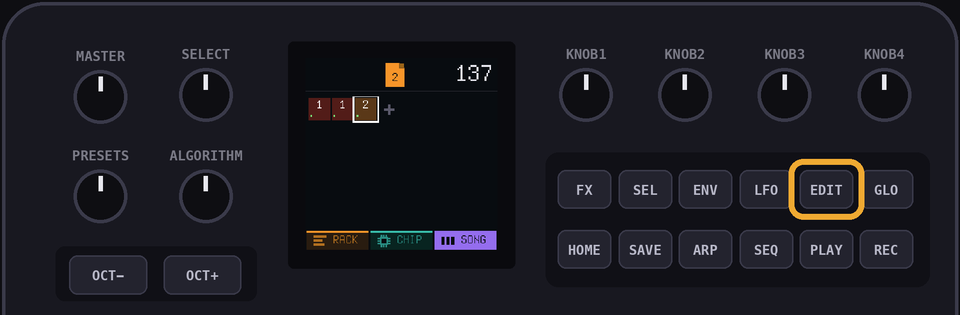

Bar 3 is almost the same. Hit OCT+ for another slot and turn PRESETS to 1. Now hold EDIT to give it its own copy. The number changes
a-copy
Tap EDIT to open the copy in the RACK view, then hit SEQ

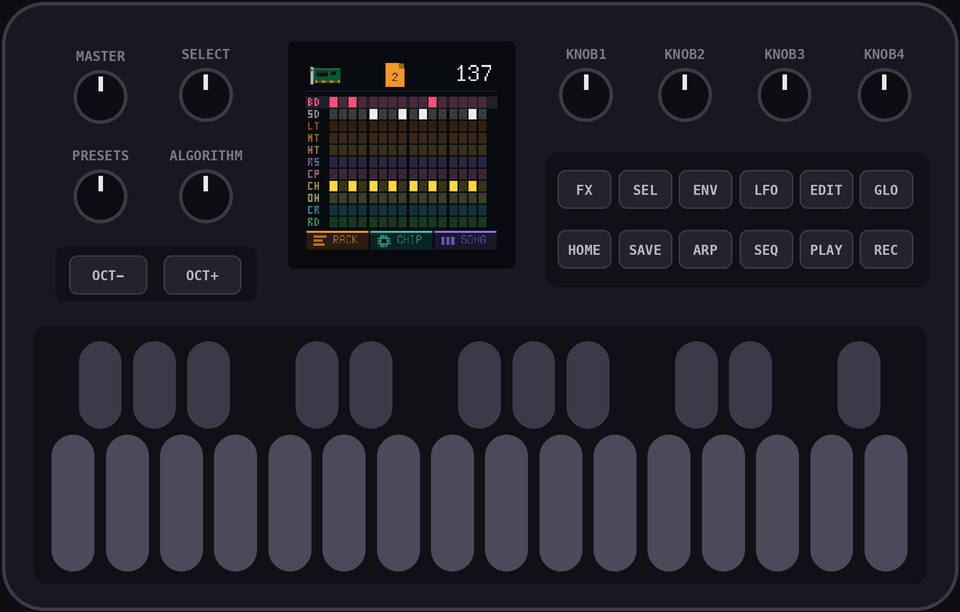

The snare changes: press the 2nd black key, then white keys 13 and 16 to take them away, and 15 to add it
The kick on 12 goes: press the 1st black key and white key 12
a-bar3

8Bar 4

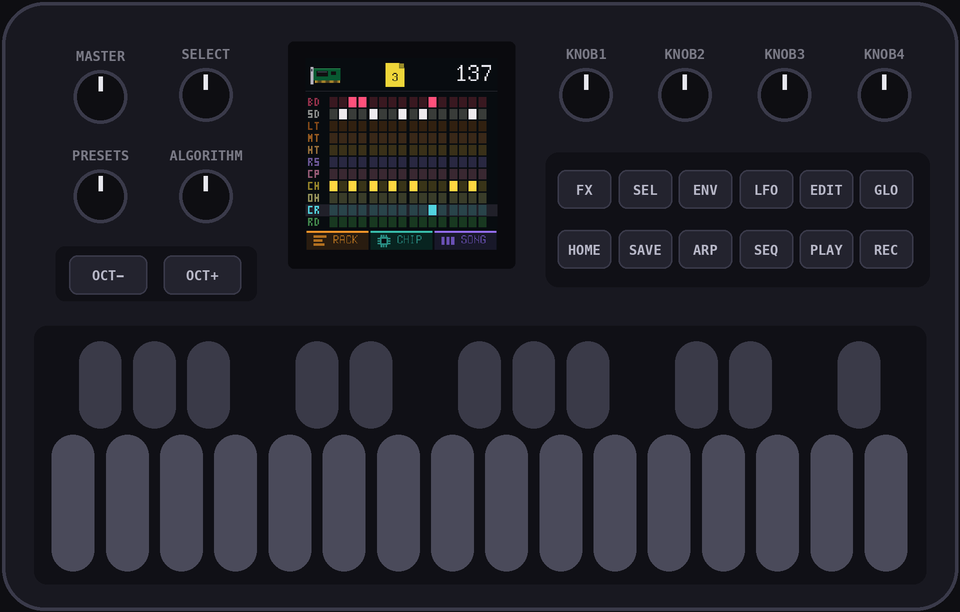

Same trick. HOME to the SONG view, OCT+, turn PRESETS to the page you just made (it says 2), hold EDIT, tap EDIT, hit SEQ
Hi-hat: 2nd to last hit goes. Black key 8, white key 11 to take it away
Snare: add a hit on 2. Black key 2, white key 2
Kick: black key 1. Take away 1, add 4
Last one, the crash. Press the 10th black key, then white key 11
a-bar4

9All four

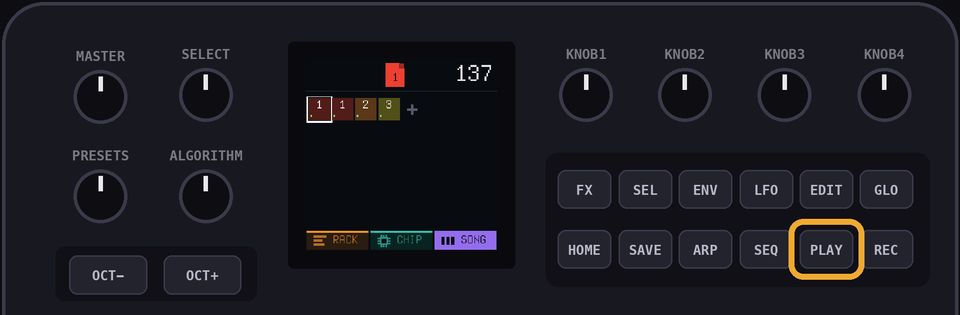

HOME back to the SONG view, turn SELECT to slot 1 and hit PLAY.
a-final
PROTIP: Want to hear one bar on its own? Go to the RACK view, pick the page with ALGORITHM and hold PLAY
Delete the drums, add them again under a different console, and play it again. Same break, a whole new machine
